ElectroPath

Microprocessors have gotten cheap. The price is often a small fraction of a development board’s cost, but bulky (and unaesthetic*) shields are still required to do most projects. Epathy boards are designed with the control circuitry needed to create projects built in. Please check out our built in features and view some of our example projects that use this board.

Microcontroler: expressif ESP8266
Link:https://espressif.com/en/products/hardware/esp8266ex/overview
Input voltage: 3.3-17V
3V3 IO pins: 4* (10mA)
3V3 power: 300mA available (800mA total)
5V IO pins: 2 (50mA)
Sinks: 3 (20V/3A)
Accelorometere: +- 2,4,8,16 g, @ 8 bit
Dimensions: 25x26x8mm (27x27x11 w/ OLED)
Weight: 4.5g (8g w/ OLED)

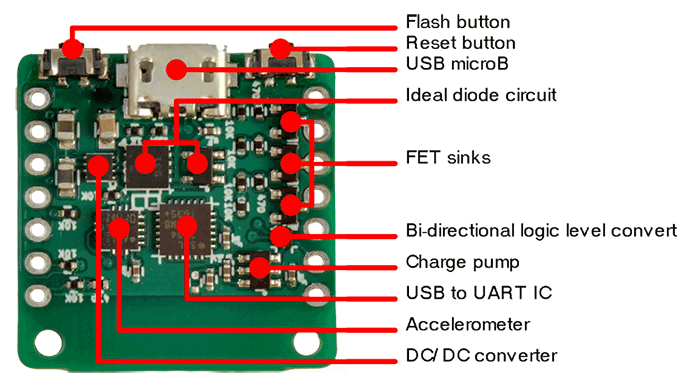

Wide Input Range

The built in high efficiency DC/DC converter allows Epathy to run off 3V to 17V

Compact Design

With a footprint of 1 sq inch, Epathy can fit just about anywhere.

Accelerometer

Built in 3-axis accelerometer for motion and orientation detection.

Two 5V I/O pins

The on board Bi-directional logic converter allows you to communicate with devices requiring 5V logic.

Ideal diode protection

By using an ideal diode circuit, Epathy provides protection without the stringent current limitations

3 FET current sinks

The three PWM capable current sinks can each handle up to 20V and 3A

USB interface

Program and power your devices using the USB microB connector without any additional components

Optional OLED

Put on the optional OLED screen for easy debugging while only adding a few mm to the dimensions.

WiFi comunication

Built in 2.5 GHz b/g/n Wifi allows wireless comunication

ADC input

ADC input accepts up to 20V with 20mV precision

I2C ready

Connect just about anything with 12C. Epath can even provide up to 300mA of 3V3 to external devices.

4 3V3 I/O pins

Four* 3V3 I/O pins.
